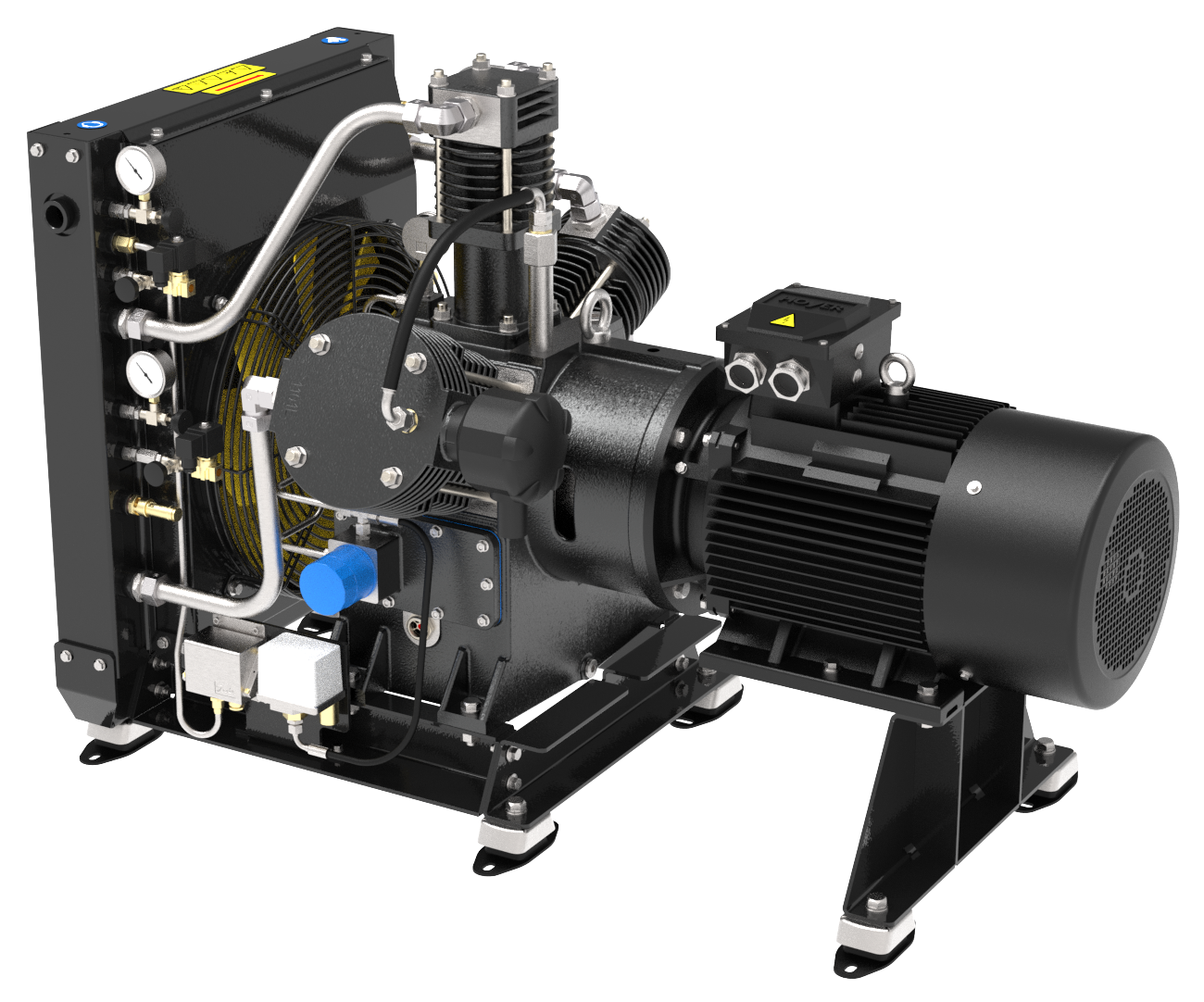

Starting air compressor 3L-100
Product
- Productcode: 3L-100
Properties
- Cooling: Air Cooled
- Air: Starting Air
- Working pressure: 30 - 40
- Capacity: 66 - 80 - 101 - 122
- Power supply: 380 - 480 - 690
- Hertz: 50 - 60
The DENO 3L-100 is a piston type, starting air compressor. The compressors can be delivered as loose units as well as completely assembled starting air skids for easy installation and direct start-up. Each compressor complies to the rules and regulations of all the major classification societies.
- Air cooled
- Direct driven
- 3 stages
- 3 cylinders
- Working pressure (bar): 30
- Max. working pressure (bar): 40
- Voltage (V): 380 - 690
- Hertz (Hz): 50 / 60
- Capacity (m3/h): 66 - 122
- RPM: 950 - 1750
Lower pressure on request.
Info:
| RPM | m3/h | Hz |
|---|---|---|
| 950 | 66 | 50 |
| 1450 | 101 | 50 |
| 1150 | 80 | 60 |
| 1750 | 122 | 60 |
