Starting air compressor 2L-25
Product
- Productcode: 2L-25
Properties
- Cooling: Air Cooled
- Air: Starting Air
- Working pressure: 30 - 40
- Capacity: 30 - 25 - 16 - 20
- Power supply: 380 - 480 - 690
- Hertz: 50 - 60

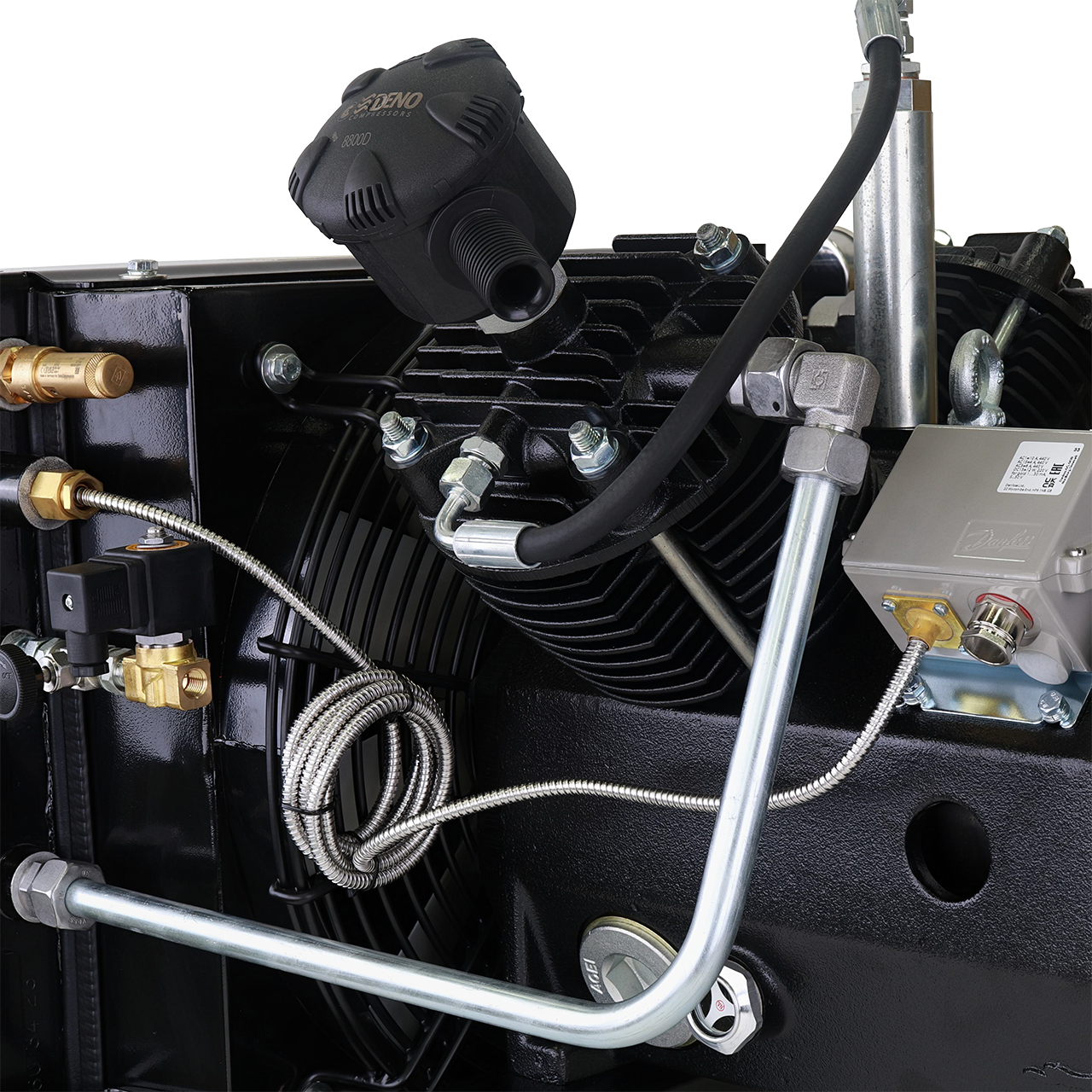

The DENO 2L-25 is a piston type, starting air compressor. The compressors can be delivered as loose units as well as completely assembled starting air skids for easy installation and direct start-up. Each compressor complies to the rules and regulations of all the major classification societies
- Direct driven
- 2 stages
- 2 cylinders
- Working pressure (bar): 30
- Max. working pressure (bar): 40
- Voltage (V): 380 - 690
- Hertz (Hz): 50 / 60
- Capacity (m3/h): 16 - 30
- RPM: 950 - 1750
Lower pressure on request.
Info:
| RPM | m3/h | Hz |
|---|---|---|
| 950 | 16 | 50 |
| 1450 | 25 | 50 |
| 1150 | 20 | 60 |
| 1750 | 30 | 60 |
