Rotary screw compressor DSR3
Product
- Productcode: DSR3
Properties
- Cooling: Air Cooled - Water Cooled
- Air: Working Air
- Working pressure: 8 - 13
- Capacity: 23 - 32
- Power supply: 380 - 480
- Hertz: 50 - 60

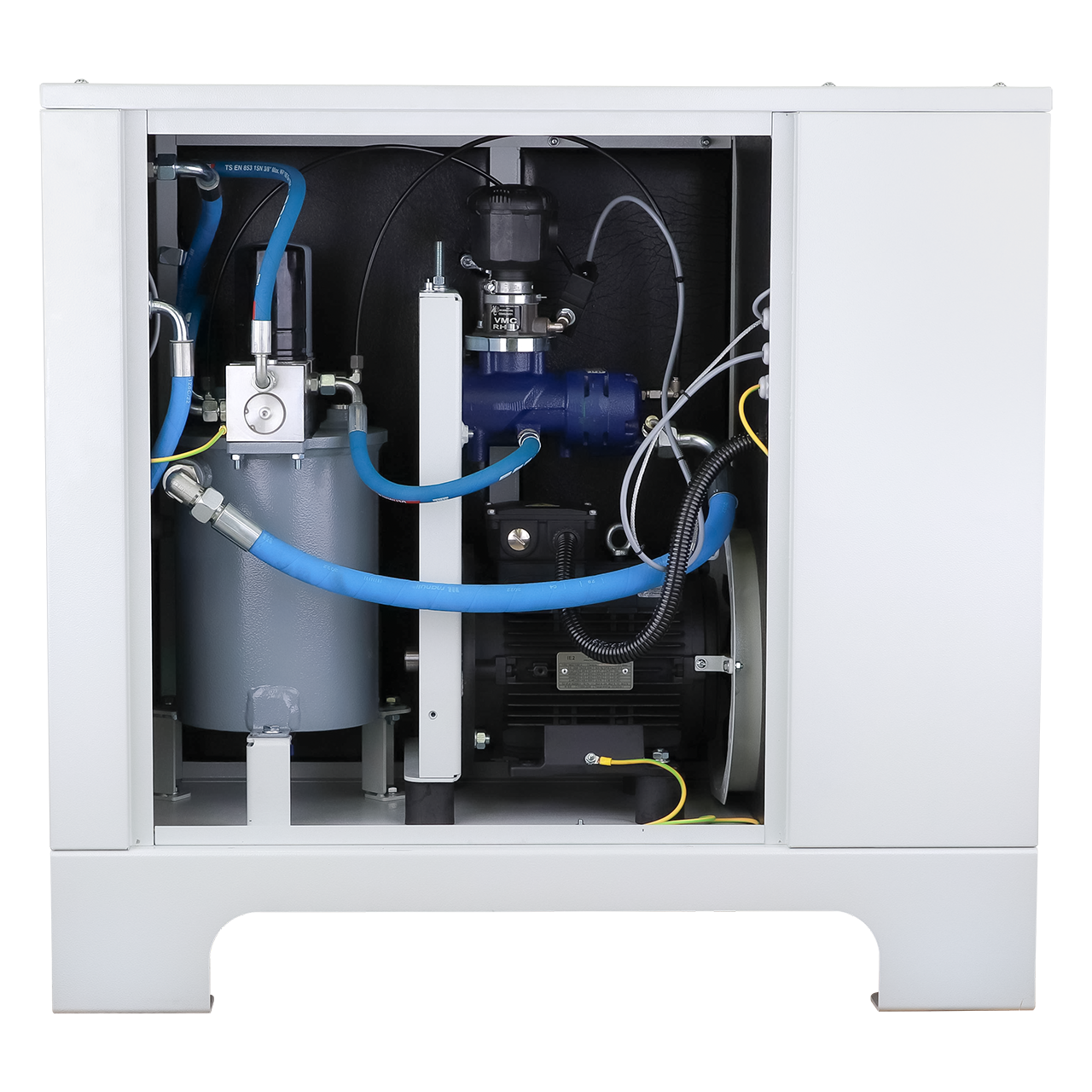

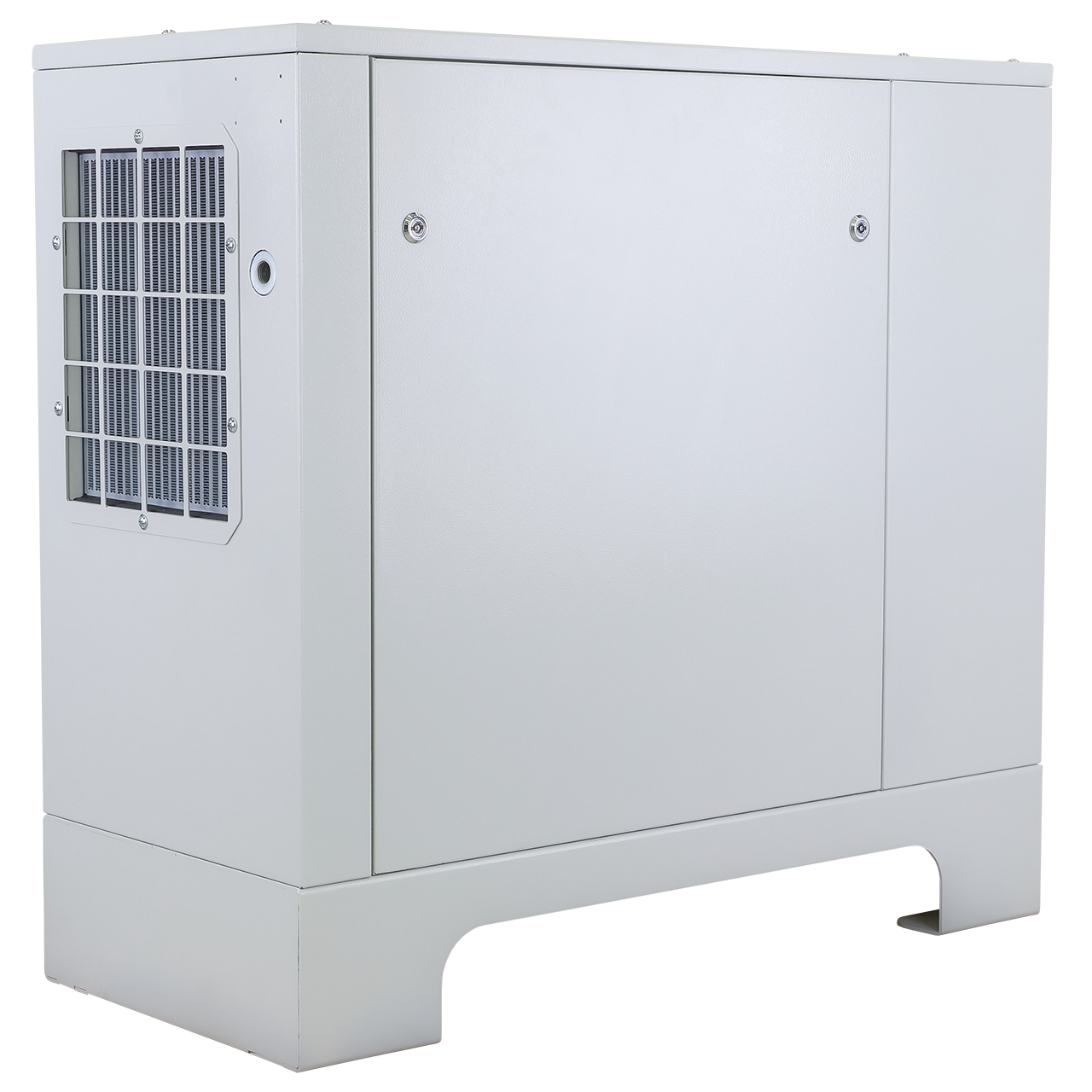

The DENO DSR3 is a belt driven, oil injected, rotary screw compressor. It is built into a compact, sound reducing enclosure with quick release panels for easy checks and maintenance. Operation of the compressor is fully automatic by use of a highly sophisticated and user friendly PLC panel.
- Air cooled or water cooled
- Belt driven
- Working pressure (bar): 8-13
- Max. working pressure (bar): 13
- Voltage (V): 380 - 480
- Hertz (Hz): 50 - 60
- Capacity (m3/h): 23 - 32
Non standard voltages and pressure upon request.
Info:
| Bar | M3/h | 50 Hz | M3/h | 60 Hz |
|---|---|---|---|---|
| 8 | 28 | 50 | 32 | 60 |
| 10 | 26 | 50 | 39 | 60 |
| 13 | 23 | 50 | 26 | 60 |
