Rotary screw compressor DSR37
  • Rotary screw compressor DSR37
  • Rotary screw compressor DSR37

Rotary screw compressor DSR37

Product
  • Productcode: DSR37
Properties
  • Cooling: Air Cooled - Water Cooled
  • Air: Working Air
  • Working pressure: 8 - 13
  • Capacity: 258 - 389
  • Power supply: 380 - 480
  • Hertz: 50 - 60

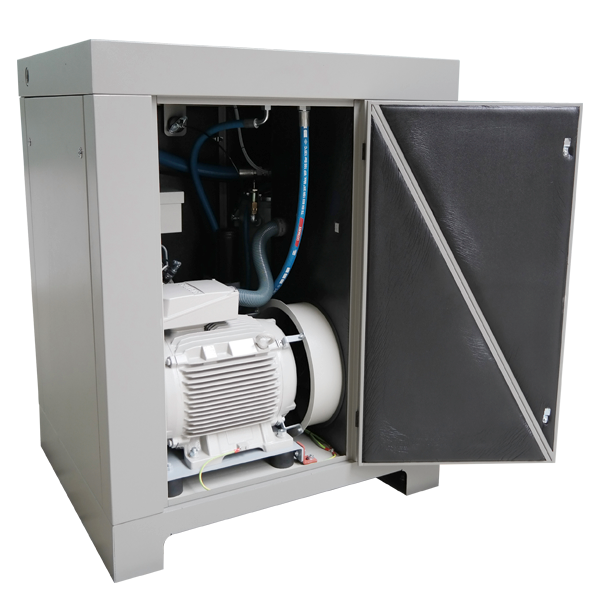

The DENO DSR37 is a belt driven, oil injected, rotary screw compressor. It is built into a compact, sound reducing enclosure with quick release panels for easy checks and maintenance. Operation of the compressor is fully automatic by use of a highly sophisticated and user friendly PLC panel.

  • Air cooled or water cooled
  • Belt driven
  • Working pressure (bar): 8-13
  • Max. working pressure (bar): 13
  • Voltage (V): 380 - 480
  • Hertz (Hz): 50 - 60
  • Capacity (Nm3/h): 258 - 389

Non standard voltages and pressure upon request.

Info:

BarNM3/h50 HzNM3/h60 Hz
83425038960
103125035560
132585029460
